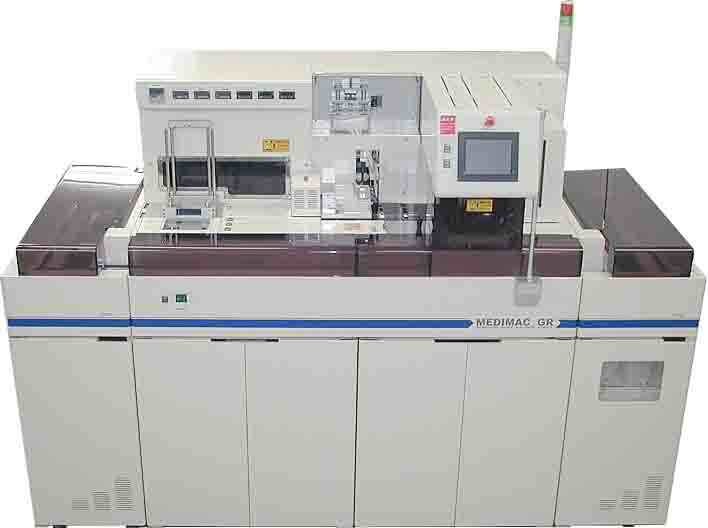

Automatic Blood Group testing System

【Characteristic】

●Automatic Blood Group testing system
●High speed minimum 250samples/hr, the first sample from setting to finish only 12min.
●ABO Forward and Reverse testing
●Rh（D） Grouping
●Unusual antibody screening
●Specific blood group antigens screening
●U-bottomed microplate centrifugation
●Reduce processing time, minimum 250 Samples/Hour
●Drain automatic sterilization system
●Reagent cooling system
●Stabilization of reaction temperature
●Microplate management

【Specifications】

( 1 ). Basic Specifications
1. Functional unit
1) Analysis unit body (EMU)        H1610×W1300×D850mm
2) Samples Supply Unit (STU1)      H1030×W360 ×D750mm(Floor Type)
3) Samples Storage Unit (STU2)     H1030×W360 ×D750mm(Floor Type)
4) Coombs Dispensing Unit          H1250×W1000×D750(mm)(Optional unit)
5) Tube cap opening unit           H1110×W300×D750(mm)(Optional unit)
6) Data processing unit (DPU)

2. Weight:
Approx 500Kg (EMU + STU1 + STU2)
Approx 150Kg (Coombs dispensing unit)
Approx 100Kg (Tube cap opening unit)
Approx 800Kg (Gross weight)

3. Power:
EMU + STU1 + STU2 : Approx AC100V 50/60Hz 1000VA
Coombs dispensing unit :Approx AC100V 50/60Hz 300VA
Tube cap open unit :Approx AC100V 50/60Hz 150VA
DPU : Approx AC100V 50/60Hz 500VA

4. Analysis Method: Centrifugal Agglutination

5. Reactor: Permanent plate 120 (with ID Plate)

6. Sample tubes: OD 13.3 × 100mm length

7. Capacity: minimum 250samples/hour (depending on testing parameters.)

8. Channel configurations: up to 12 channels / sample
   1 ~ 12 channels / samples can be set up to 40 samples / plate

9. EMU: Temperature control (room temperature ~ 28℃)
               Hot air blower + Air blower + timer


( 2 ). EMU function
1. Plate supply unit:
    20 plates hopper feeder(can add plates any time)
    Plate temperature-control function (25℃~35℃)
2. Plate transfer unit
3. Plate ID reader
4. Sample transfer unit
5. Sample ID reader
6. Plasma Sampling unit
    Plasma samples: 15 ~ 50μl / well
    Dispensing localization
7. Blood cell dilution unit
    Blood cell dilution is provided with two line (two probes for dilution)
    Blood sample volume: 20 ~ 50μl
    Dispensing amount of dilution liquid: 400 ~ 2000μl
    Number of dilution tube: 24
    Dilution container with liquid level limit detection
8. Blood cell sampling
    Sampling probe (R1, R2 probe): 2
    Amount of blood sampling: 15 ~ 50μl / well
    Dispensing localization
9. Dilution cup washing
    Dilution cup removable from cup holder
10.Reagent dispensing unit
   Number of reagents: Up to 12; 15ml/ch capacity
   Temperature control (10℃~ 20℃)
   Reagents Head: Tip nozzle
   Reagent dispensing volume: 15 ~ 40μl / well
11. Mixing unit
   Setting time: 0sec to 300sec (by DPU program)
   RPM: 0 ~ 3000rpm (by DPU program)
12. Centrifugal rotation
   Setting time: 0 sec 300 (by DPU program)
   RPM: 0 ~ 2000rpm (by DPU program)
   Turning radius: 150mm
13. Agitation unit
   Setting time: 0 sec 300 (by DPU program)
   RPM: 0 ~ 3000rpm (by DPU program)
14. Rotation unit
   Timer, RPM can be set (by DPU program)
   Setting time: 0sec to 300sec  (by DPU program)
   RPM: 0 ~ 1200rpm (by DPU program)
15. Pattern Reading unit
   Precision color CCD camera, based on image processing method
   Three-dimensional display
16. Visual determination unit
17. Plate storage unit
   20 plates hopper for storage, plate limit detector
18. EMU control panel
   For Prime time and maintenance
   Color touch panel
19. Drain treatment system
   Sterilization by hydrogen hypochlorite
   Built-in body
